Thames Class Offshore Patrol Vessel OPV – Coast Guard Variant

The Coast Guard version of the Thames Class Offshore Patrol Vessel (OPV) has been designed to support a wide variety of naval and coast guard missions, including EEZ surveillance, coastal water security, safety at sea and humanitarian aid. The OPV design incorporates proven commercial ship design standards, equipment, and technology to provide a cost-effective base vessel which can be readily adapted to specific needs and incorporate flexible mission modules to meet changing requirements.

The 85.5 metres, abt. 2,000 tonne displacement OPV has a top speed of 25 knots, with a range of abt. 5,000 NM, while accommodating a complement of up to seventy (70) persons with a separate area to temporarily accommodate up to fifty (50) supernumerary persons.

The vessel has an emergency transport capacity of up to 200 persons in total.

The vessel is fitted with a combined propulsion configuration with two (2) Main Diesel Engines and two (2) E-motors connected through two (2) Gearboxes to two (2) shaft lines each driving a Controllable Pitch Propeller (CPP).

Design Benefits

• Off-the-shelf commercially available equipment,
• Superior hull lines, CFD optimized,
• Power-take-in (PTI) mode up to 12 knots
• Low fuel oil consumption, high propulsive efficiency,
• Ease of access for inspection, maintenance and repair of all equipment and structure,
• Construction-friendly: ICE can assist with a transfer of shipbuilding technology, programme planning and procurement support, as necessary.

Thames Class Offshore Patrol Vessels (OPVs) Design

The Thames Class Offshore Patrol Vessel (OPV) has been designed to support a wide variety of tasks for naval and coastguard missions, including EEZ surveillance, coastal water security, safety at sea and humanitarian aid. The OPV design incorporates proven commercial ship design standards, equipment and technology to provide a cost-effective base vessel which can be readily adapted to individual needs and incorporate flexible mission modules to meet changing requirements.

The 85.5 metre, abt. 2,000 tonne OPV has a top speed of 22 knots, with an endurance range of 4,500 nm, while accommodating a complement of up to 60 (male and female) with accommodation for an additional 30 auxiliary or special forces personnel.

The vessel is adaptable to a variety of weapons and combat systems, and ICE has designed one version with, and one without, a helicopter hangar.

Design Benefits

• Off-the-shelf commercially available equipment,
• Superior hull lines, CFD optimized,
• Low fuel oil consumption, high propulsive efficiency,
• Ease of access for inspection, maintenance and repair of all equipment and structure,
• Construction-friendly: ICE can assist with a transfer of shipbuilding technology, programme planning and procurement support, as necessary.

2.4 M Bbl Generic FPSO Hull (G-2400-SM)

Based on experience from more than 40 FSO and FPSO projects, ICE has designed a robust hull readily adaptable as a platform for high-capacity, deep-water O&G production.
Key features of the new G-2400-SM are:

• Suitable for a range of topside configurations up to 40,000 tons and storage of 2.4 million barrels of oil,
• Well-balanced hydrodynamic and motion characteristics for harsh metocean conditions,
• Symmetrical hull form, allowing either end to be positioned towards the prevailing weather,
• Double hull including double bottom,
• Spacious deck area thanks to a fully rectangular main deck,
• Spread mooring, optionally adaptable to internal or external turret or tower yoke mooring solutions,
• Energy efficient accommodation for up to 200 persons,
• Minimum 25-year design service life without dry-docking,
• Reduced risk and short lead time thanks to a mature design developed by an experienced designer with substantial capacity,
• Conventional shipyard technology; the hull may be assembled from joinable hull modules built in more than one yard.

Focus on Sustainability

Low emission and high energy efficiency due to integration of systems such as:

• HC gas blanketing,
• VOC recovery,
• CO2 capture (optional),
• Waste heat recovery,
• Fuel management,
• Hybrid power and storage (optional),
• HVAC energy recovery,
• Integrated wet and dry waste treatment,
• Other systems as specified by the Operator or Company.

ICE has substantial experience in design for reduced emissions and increased energy efficiency and will work with operators and topside process designers to select equipment and systems to meet industry-leading sustainability targets.

1.6 M Bbl Generic FPSO Hull (G-1600-SM/W)

In December 2019, ICE was awarded an Approval in Principle (AIP) by the American Bureau of Shipping (ABS) for its G-1600-SM/W generic floating production storage and offloading (FPSO) hull design. The AIP means that experts at ABS’ world headquarter in Houston have reviewed critical plans and calculations of the vessel and have found that they comply with the applicable rules and regulations and good practise.

The G-1600-SM/W it is a further development of ICE’s earlier FPSO hull design that won the approval in principle from DNV-GL and was selected by Brazilian clients.

Key features of the new G-1600-SM/W are:

• Simple hull-shape, with double sides, single bottom and a rounded bow to minimize slamming. Favourable motion characteristics.
• Economical to build using conventional shipyard technology, including to be assembled from hull blocks built in more than one yard, to shorten construction time.
• The basic version is designed for a variety of topside configurations weighing up to 30,000 tons capable of up to 180,000 barrels of oil per day production rate.
• Storage capacity of 1.6 million barrels of oil available for offloading, with an offloading capacity of one million bopd.
• Design extendable to accommodate topside configurations up to 40,000 tons and a storage capacity of 2.4 million barrels of oil.
• Spread mooring system with risers on the side; a turret moored version is optional.
• Mature Basic Design, ready for Class approval and Detail Design to incorporate project-specific equipment and solutions.

ICE will license the G-1600-SM/W design “as is” and will, as required, assist with adaptation to special metocean conditions, topside configuration, Class and flag requirements and customer preferences.

1.6 M Bbl Generic FPSO Hull (G-1600-SM)

Enabling FPSO newbuilding projects to have a quick start-up and save costs, ICE’s FPSO hull designs provide a suitable platform for a wide range of FPSO topside and mooring configurations. The barge-shaped designs feature double sides, a single bottom and a rounded bow to minimize slamming. The designs are economical to build using conventional shipyard technology and can be assembled from joinable hull modules built in more than one yard.

The design capable of storing 1.6 million barrels of oil available for discharge, with an offloading capacity of one million barrels of oil per day, has been granted DNV approval in principle.

Zero-emission Service Operation Vessel (WS-90-SOV)

ICE has developed a Work-Station Service Operation Vessel design suitable for emission free operations and cost-effective maintenance of offshore wind farms. The concept uses a battery-powered propulsion system designed to be recharged using offshore charging stations.

High operational workability is facilitated by positioning the motion compensated gangway along the vessel centreline, enabling transfer of technicians to either side of the vessel. The design offers 465 sqm enclosed warehouse space and a 400 sqm working space on the weather deck aft.

Design Highlights:

• Operates on Energy Storage System (ESS), rechargeable offshore,
• Charging buoy hook-up station,
• Diesel generators for backup only,
• Safe walk-to-work transfer by 3D motion compensated gangway,
• 3D motion compensated crane for efficient cargo handling,
• Smart container skidding and seafastening system in the warehouse below deck,
• Ship-to-ship transfer capability,
• Standardized, cost-effective vessel design that can be readily adapted to a variety of operational conditions and building methods.

Sustainability:

ICE WS-90-SOV design features EES capacity for one day operation and combined with the battery offshore charging system enables zero-emission operations.

Logistics, Efficiency & Safety:

ICE WS-90-SOV concept combines workshops & storage space, high-comfort accommodation facilities and a transport method in one single design. The 3D motion compensated gangway enables safe and flexible walk-to-work operations in significant wave-heights (Hs) up to 4.0 m.

ICE WS-90-SOV is designed to operate under normal conditions solely on battery power for up to 15 hours before recharging, including hotel consumption and use of gangway and DP. In addition to providing high-quality single cabin accommodation, the vessel is also designed to offer generous storage, efficient logistics and safe access to wind turbines for technicians.

Work-Station Service Operation Vessel (WS-60-SOV)

ICE has developed a Work-Station Service Operation Vessel design suitable for cost-effective maintenance of offshore windfarm installations. The concept uses standardized specifications and modular components to lower costs and shorten delivery times.

Operational flexibility is facilitated by positioning the gangway along the vessel centreline, enabling transfer of technicians to either side of the vessel. The vessel offers 470 sqm enclosed warehouse space and a 270 sqm working space on the weather deck aft. A total of 8 TEUs can be stored on the two decks. The production-friendly structure and use of proven equipment ensures competitive shipyard cost and short construction time.

Design Highlights:

• Standardized, cost-effective vessel design that can be readily adapted to a variety of operational conditions,
• Optimized hull form, using Computational Fluid Dynamics (CFD) analysis for fuel efficiency and favourable motion characteristics,
• Safe walk-to-work transfer by 3D motion compensated gangway,
• 3D motion compensated crane for efficient cargo handling,
• Smart container skidding and seafastening system in below deck warehouse,
• Integration of an HVAC system that provides 100% fresh air flow,
• Integration of energy storage system (ESS),
• Ship-to-ship transfer capability.

Efficiency & Safety:

ICE WS-60-SOV concept combines workshops & storage space, high-comfort accommodation facilities and a transport method in one single design.

The 3D motion compensated gangway provides safe and flexible walk-to-work operations in significant wave-heights (Hs) up to 3.5 m. An elevator allows for stepless cargo and people transit between different deck levels and the gangway platform.

Sustainability:

The integrated HVAC system with 100% fresh air ventilation flow (no recirculation) helps reducing the required heating, cooling and humidification demand significantly. Furthermore, the energy storage system helps enhance efficiency and sustainability of operations.

The design is ready to meet future requirements and can be fitted with tailored solutions.

Accommodation:

The concept is offered as a standard 60 POB vessel (WS-60-SOV), or optional 40 POB vessel (WS-40-SOV) with the removal of the C Deck accommodation level. Special attention has been given to the level of comfort for the crew and maintenance personnel on board by reducing noise, vibrations and vessel motion.

All-Electric Ferry

ICE has developed a design for a fully electric battery powered passenger and car ferry. The 60-meter vessel can accommodate 200 passengers and 45 cars on a single car deck for quick and easy loading and unloading. The shallow-draft double-ended mono-hull ferry will be propelled by four 750 kW propeller pods, achieving a speed of 15 knots in open water and operating with 10 knots in harbour.

Remotely operated battery charging stations will be fitted shore-side on each terminal, which will also be equipped with magnetic pad mooring mechanisms to unmanned moor and release the vessel quickly and securely in a variety of tidal conditions.

Design Benefits:

• Eliminate onboard fuel consumption
• Emission-free
• Low noise
• Reduced maintenance
• Improved redundancy

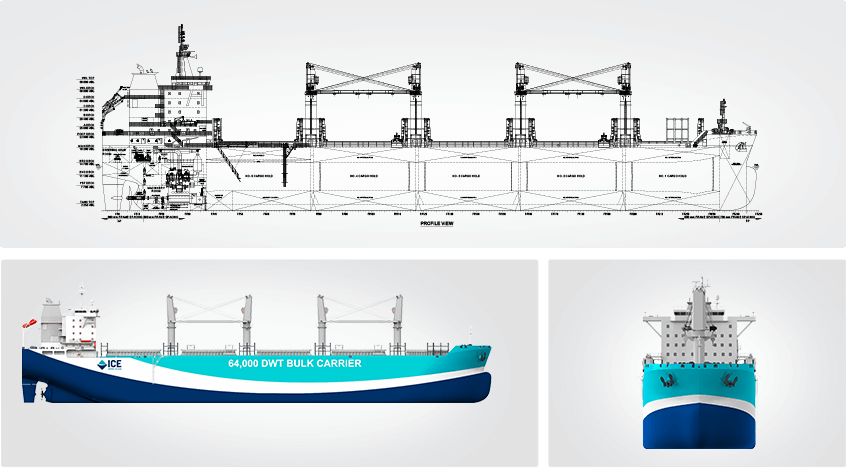

32,000 dwt Double Hull Bulk Carrier Design

ICE has designed a double hull Handy-size bulk carrier with large hatches that is robust, flexible and economical. It is compliant with the latest relevant Common Structural Rules. The hull form has been developed by use of advanced computational fluid dynamic (CFD) analyses and has thereafter been extensively tested in ICE’s own ITTC-approved towing tank to obtain the lowest possible hull resistance.

The 32,000 dwt vessel is suitable for carrying a wide range of bulk cargoes, such as: coal, grain, ore, cement, alumina, bauxite, bagged cargoes, steel coils, industry log, lumber and plywood.

She is laid out with 5 cargo holds and equipped with four 30 tonnes SWL deck cranes (holds 2, 3 and 4 are fully box shaped and holds 1 and 5 are semi-box type with lower hopper slopes as necessary to provide double skin). The vessel is designed to be an ocean going bulk carrier with bulbous bow, transom stern, raised forecastle and poop deck, open water type stern frame, single rudder and single screw propeller driven by a slow speed diesel engine.

84,000 cbm Fully Refrigerated LPG Carrier

ICE has developed a well-balanced large-scale fully refrigerated gas carrier hull design with a carrying capacity of 84,000 cbm, compliant with IGC 2016 rules.

The vessel is designed as a fully refrigerated liquefied petroleum gas carrier, with four (4) independent Type A tanks, with a 2G hazard rating. Low speed engine combined with high propulsion efficiency and an optimised hull form result in a low fuel consumption.

The vessel is very well balanced so no ballast is required for entire voyage in fully loaded and segregation conditions.

The design can be adapted to incorporate a wide range of proven equipment and systems enabling selection of competitively priced solutions from proven suppliers.

20,000 cbm Shallow Draft LNG Carrier

ICE has designed a shallow-draft gas carrier, with a cargo capacity of 20,000 cu. m. in two type C bi-lobe cargo tanks, semi-pressurised and fully refrigerated.

With a five-meter draft, the vessel is designed for both seagoing service and to meet the LNG delivery challenges presented by shallow rivers and restricted harbours.

The Cargo Containment System (CCS) facilitates “milk-run” type delivery to a variety of small and medium size terminals, allowing partial loading levels of cargo tanks and atmospheric pressure discharge.

The type C bi-lobe cargo tanks have been dimensioned to maximize cargo-carrying capacity within a given set of hull dimensions and draft restrictions, without altering the ship’s performance.

The dual-fuel propulsion system is able to run on cargo boiloff gas (BOG) or distillate fuel.
BOG utilised as fuel allows the vessel to comply with sulphur emission control area (SECA) restrictions and to manage the amount of BOG during laden trips.

The concept is open to design variations in terms of overall vessel size and propulsion system arrangement.

8,500 cbm LEG/LPG/VCM Dual-fuel Carrier

Based on extensive gas ship design experience, ICE has designed a small-scale gas carrier with a cargo capacity of 8,500 cubic meters, compliant with IGC 2016 rules as well as the rules of the selected Class and Flag State.

The vessel is designed as a combined gas carrier with two (2) independent, insulated, cylindrical IMO Type C cargo tanks. She is suitable for shipping various cargoes (LEG/LPG/VCM) which makes her deployable in multiple trades, enabling a high utilisation rate of the vessel.

Design Highlights:

• World-wide trading
• Hull form optimized using Computational Fluid Dynamics (CFD) analysis
• Single decked with machinery and accommodation located aft
• Low-fuel consumption, high propulsive efficiency
• Midship cargo and LNG manifolds and flexible hoses for different types of gas transfers from ship to shore and vice versa
• Space reservations for Scrubber & Selective Catalytic Reduction (SCR) included
• BWT unit compliant with the latest IMO BWM Convention

50,000 dwt Oil / Chemical Tanker Design

ICE has designed a robust and economical tanker for transport of crude oil, oil products and IMO Type 2 & 3 chemicals, with six cargo separations. Extensive model testing in ICE’s own ITTC-recognised towing tank combined with Computational Fluid Dynamics (CFD) analysis has resulted in a highly efficient hull form.

The 50,000 dwt tanker has a double-hull structure meeting international requirements for the prevention of marine pollution. Segregated fuel tanks for navigation world-wide as well as in ECA waters are included.

A Global Finite Element (FEA) analysis has been developed by ICE in accordance with the new IACS harmonised Common Structural Rules (CSR), enabling fast completion of the remaining design process to suit specific owner and yard requirements.
